如何在墙内正常导入 Vagrant 虚拟机模板

当你满心欢喜的安装完了 vagrant 之后，在你第一次 vagrant up 命令的时候，是下载超时么？你的内心是什么感受？想放弃了么？

其实你只需要找到国内的 box 文件镜像服务器，或者下载地址，然后手工下载对应的 Box 文件（操作系统镜像文件），并导入即可，本文将帮你铲除这只官方镜像文件下载失败的拦路虎。

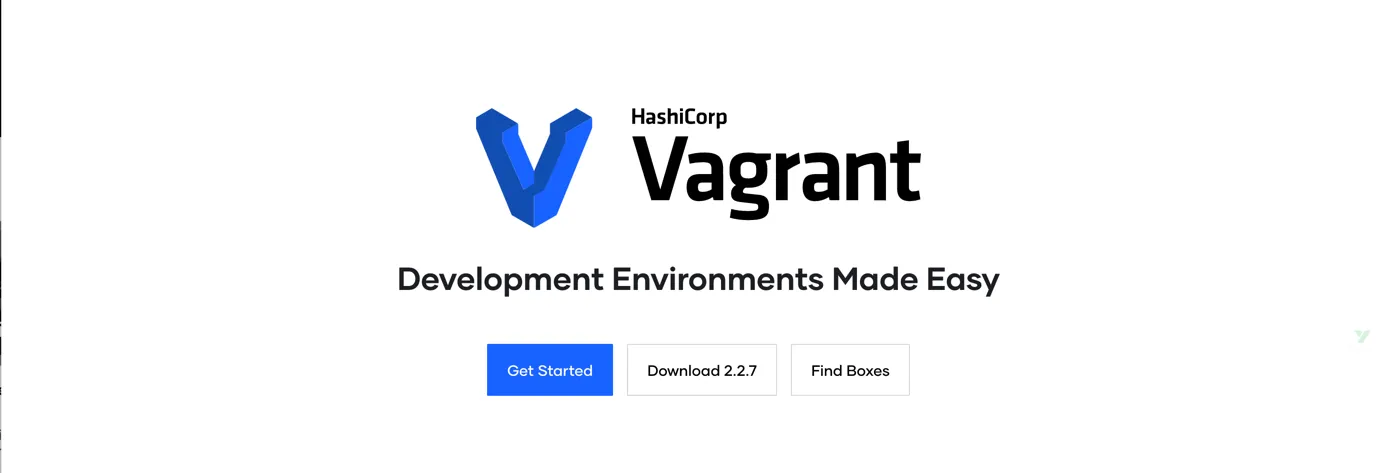

Vagrant 的优势：

虚拟机对于系统级开发和测试工作具有不可替代的作用
手工安装的虚拟机非常

准备工作

我的测试环境如下，如果你的测试环境和我的不同，但是本操作方法和过程也同样的适用于相似的环境。

环境描述：

macOS catalina version 10.15.3
vagrant 2.2.4
Virtuabox 6.0.15r135660

如果你也百度了’ vagrant box 国内镜像‘的话，结果会使你很失望，清华大学等站点只是缓存了个别的镜像文件，并没有其它版本特别全面的网站，更没有完整的镜像。如果你知道其它国内的镜像站点请告诉我，我会增加到本文。

Ubuntu 的可以浏览这两个目标下载网址。

https://mirrors.tuna.tsinghua.edu.cn/ubuntu-cloud-images/vagrant/

然后用vagrant 下面的命令就可以将 box 下载并且添加到本地。

ubuntu 18.04 LTS:

vagrant box add https://mirrors.tuna.tsinghua.edu.cn/ubuntu-cloud-images/bionic/current/bionic-server-cloudimg-amd64-vagrant.box –name ubuntu18

ubunt 16.04 LTS：

vagrant box add https://mirrors.tuna.tsinghua.edu.cn/ubuntu-cloud-images/xenial/current/xenial-server-cloudimg-amd64-vagrant.box –name ubuntu16

ubuntu14：

vagrant box add https://mirrors.tuna.tsinghua.edu.cn/ubuntu-cloud-images/vagrant/trusty/current/trusty-server-cloudimg-amd64-vagrant-disk1.box –name ubuntu14

对于 CentOS 而言，它的官网整理的比较好，提供了各种格式的下载，可能需要科学上网才能访问到 Centos 的下载网址。

http://cloud.centos.org/centos/7/vagrant/ http://cloud.centos.org/centos/8/vagrant/

实战建议：你并不需要下载过多的 box 操作系统镜像文件，够用即可。建议将最近有可能使用到的 Box 文件用断点续传的多线程下载工具下载到本机磁盘备用。我下载了一些，关注的微信号‘ MyDevOps ’ 回复 box1 即可获得百度网盘下载地址，这个共享目录中有本文中所提到的所有 Box 文件。

导入 Box 文件

用 vagrant box add 命令将本地下载好的 box 文件导入到 vagrant 的主目录中，macOS 下是在~/.vagrant/ 目录里。

使用vagrant box list名先查看本地已有的 box 清单，下面的执行结果如下。

➜  ~ vagrant box list
Puppetlabs Ubuntu 12.04.2 x86_64, VBox 4.2.10, No Puppet or Chef (virtualbox, 0)
bento/centos-7.1                                                 (virtualbox, 2.2.2)
bento/centos-7.2                                                 (virtualbox, 2.3.1)
bento/centos-8                                                   (virtualbox, 202002.04.0)
bento/ubuntu-16.04                                               (virtualbox, 0)
coreos-alpha                                                     (virtualbox, 1451.2.0)
geerlingguy/centos6                                              (virtualbox, 0)
geerlingguy/centos7                                              (virtualbox, 0)
geerlingguy/ubuntu1604                                           (virtualbox, 0)
ubuntu/trusty64                                                  (virtualbox, 20161207.0.0)
ubuntu/trusty64                                                  (virtualbox, 20170307.0.0)
ubuntu/wily64                                                    (virtualbox, 20160715.0.0)
ubuntu/xenial64                                                  (virtualbox, 20161214.0.1)
ubuntu/xenial64                                                  (virtualbox, 20170307.0.1)
➜  ~

使用vagrant box add导入，并确认。参考下面的执行过程

➜  ~ vagrant box  add ~/Downloads/box/bionic-server-cloudimg-amd64-vagrant.box --name ubuntu/bionic
==> box: Box file was not detected as metadata. Adding it directly...
==> box: Adding box 'ubuntu/bionic' (v0) for provider:
    box: Unpacking necessary files from: file:///Users/martin/Downloads/box/bionic-server-cloudimg-amd64-vagrant.box
==> box: Successfully added box 'ubuntu/bionic' (v0) for 'virtualbox'!
➜  ~ vagrant box list
Puppetlabs Ubuntu 12.04.2 x86_64, VBox 4.2.10, No Puppet or Chef (virtualbox, 0)
bento/centos-7.1                                                 (virtualbox, 2.2.2)
bento/centos-7.2                                                 (virtualbox, 2.3.1)
bento/centos-8                                                   (virtualbox, 202002.04.0)
bento/ubuntu-16.04                                               (virtualbox, 0)
coreos-alpha                                                     (virtualbox, 1451.2.0)
geerlingguy/centos6                                              (virtualbox, 0)
geerlingguy/centos7                                              (virtualbox, 0)
geerlingguy/ubuntu1604                                           (virtualbox, 0)
ubuntu/bionic                                                    (virtualbox, 0)
ubuntu/trusty64                                                  (virtualbox, 20161207.0.0)
ubuntu/trusty64                                                  (virtualbox, 20170307.0.0)
ubuntu/wily64                                                    (virtualbox, 20160715.0.0)
ubuntu/xenial64                                                  (virtualbox, 20161214.0.1)
ubuntu/xenial64                                                  (virtualbox, 20170307.0.1)
➜  ~

校验所导入的 Box

创建一个测试目录，并执行vagrant init ubuntu/bionic ，然后使用 vagrant up 测试。

➜  test pwd
/Users/martin/code/test
➜  test vagrant init ubuntu/bionic
A `Vagrantfile` has been placed in this directory. You are now
ready to `vagrant up` your first virtual environment! Please read
the comments in the Vagrantfile as well as documentation on
`vagrantup.com` for more information on using Vagrant.

test 目录下面现在生成了一个默认的 Vagrantfile 文件，查看这个默认的 Vagrantfile 配置文件。这是一个很好的学习资料。

➜ test cat Vagrantfile
# -*- mode: ruby -*-
# vi: set ft=ruby :
# All Vagrant configuration is done below. The "2" in Vagrant.configure
# configures the configuration version (we support older styles for
# backwards compatibility). Please don't change it unless you know what
# you're doing.
Vagrant.configure("2") do |config|
# The most common configuration options are documented and commented below.
# For a complete reference, please see the online documentation at
# https://docs.vagrantup.com.
# Every Vagrant development environment requires a box. You can search for
# boxes at https://vagrantcloud.com/search.
config.vm.box = "ubuntu/bionic"
# Disable automatic box update checking. If you disable this, then
# boxes will only be checked for updates when the user runs
# `vagrant box outdated`. This is not recommended.
# config.vm.box_check_update = false
# Create a forwarded port mapping which allows access to a specific port
# within the machine from a port on the host machine. In the example below,
# accessing "localhost:8080" will access port 80 on the guest machine.
# NOTE: This will enable public access to the opened port
# config.vm.network "forwarded_port", guest: 80, host: 8080
# Create a forwarded port mapping which allows access to a specific port
# within the machine from a port on the host machine and only allow access
# via 127.0.0.1 to disable public access
# config.vm.network "forwarded_port", guest: 80, host: 8080, host_ip: "127.0.0.1"
# Create a private network, which allows host-only access to the machine
# using a specific IP.
# config.vm.network "private_network", ip: "192.168.33.10"
# Create a public network, which generally matched to bridged network.
# Bridged networks make the machine appear as another physical device on
# your network.
# config.vm.network "public_network"
# Share an additional folder to the guest VM. The first argument is
# the path on the host to the actual folder. The second argument is
# the path on the guest to mount the folder. And the optional third
# argument is a set of non-required options.
# config.vm.synced_folder "../data", "/vagrant_data"
# Provider-specific configuration so you can fine-tune various
# backing providers for Vagrant. These expose provider-specific options.
# Example for VirtualBox:
#
# config.vm.provider "virtualbox" do |vb|
# # Display the VirtualBox GUI when booting the machine
# vb.gui = true
#
# # Customize the amount of memory on the VM:
# vb.memory = "1024"
# end
#
# View the documentation for the provider you are using for more
# information on available options.
# Enable provisioning with a shell script. Additional provisioners such as
# Puppet, Chef, Ansible, Salt, and Docker are also available. Please see the
# documentation for more information about their specific syntax and use.
# config.vm.provision "shell", inline: <<-SHELL
# apt-get update
# apt-get install -y apache2
# SHELL
end

➜  test cat Vagrantfile
# -*- mode: ruby -*-
# vi: set ft=ruby :

# All Vagrant configuration is done below. The "2" in Vagrant.configure
# configures the configuration version (we support older styles for
# backwards compatibility). Please don't change it unless you know what
# you're doing.
Vagrant.configure("2") do |config|
  # The most common configuration options are documented and commented below.
  # For a complete reference, please see the online documentation at
  # https://docs.vagrantup.com.

  # Every Vagrant development environment requires a box. You can search for
  # boxes at https://vagrantcloud.com/search.
  config.vm.box = "ubuntu/bionic"

  # Disable automatic box update checking. If you disable this, then
  # boxes will only be checked for updates when the user runs
  # `vagrant box outdated`. This is not recommended.
  # config.vm.box_check_update = false

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine. In the example below,
  # accessing "localhost:8080" will access port 80 on the guest machine.
  # NOTE: This will enable public access to the opened port
  # config.vm.network "forwarded_port", guest: 80, host: 8080

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine and only allow access
  # via 127.0.0.1 to disable public access
  # config.vm.network "forwarded_port", guest: 80, host: 8080, host_ip: "127.0.0.1"

  # Create a private network, which allows host-only access to the machine
  # using a specific IP.
  # config.vm.network "private_network", ip: "192.168.33.10"

  # Create a public network, which generally matched to bridged network.
  # Bridged networks make the machine appear as another physical device on
  # your network.
  # config.vm.network "public_network"

  # Share an additional folder to the guest VM. The first argument is
  # the path on the host to the actual folder. The second argument is
  # the path on the guest to mount the folder. And the optional third
  # argument is a set of non-required options.
  # config.vm.synced_folder "../data", "/vagrant_data"

  # Provider-specific configuration so you can fine-tune various
  # backing providers for Vagrant. These expose provider-specific options.
  # Example for VirtualBox:
  #
  # config.vm.provider "virtualbox" do |vb|
  #   # Display the VirtualBox GUI when booting the machine
  #   vb.gui = true
  #
  #   # Customize the amount of memory on the VM:
  #   vb.memory = "1024"
  # end
  #
  # View the documentation for the provider you are using for more
  # information on available options.

  # Enable provisioning with a shell script. Additional provisioners such as
  # Puppet, Chef, Ansible, Salt, and Docker are also available. Please see the
  # documentation for more information about their specific syntax and use.
  # config.vm.provision "shell", inline: <<-SHELL
  #   apt-get update
  #   apt-get install -y apache2
  # SHELL
end

现在可以踏实的运行 vagrant up 了，Ubuntu 的 Box 文件导入通常没有什么问题。默认配置的 Ubuntu 版本 bionic 的 vm 现在就正常启动了。

➜  test vagrant up
Bringing machine 'default' up with 'virtualbox' provider...
==> default: Importing base box 'ubuntu/bionic'...
==> default: Matching MAC address for NAT networking...
==> default: Setting the name of the VM: test_default_1585496539631_90780
==> default: Clearing any previously set network interfaces...
==> default: Preparing network interfaces based on configuration...
    default: Adapter 1: nat
==> default: Forwarding ports...
    default: 22 (guest) => 2222 (host) (adapter 1)
==> default: Running 'pre-boot' VM customizations...
==> default: Booting VM...
==> default: Waiting for machine to boot. This may take a few minutes...
    default: SSH address: 127.0.0.1:2222
    default: SSH username: vagrant
    default: SSH auth method: private key
    default: Warning: Connection reset. Retrying...
    default:
    default: Vagrant insecure key detected. Vagrant will automatically replace
    default: this with a newly generated keypair for better security.
    default:
    default: Inserting generated public key within guest...
    default: Removing insecure key from the guest if it's present...
    default: Key inserted! Disconnecting and reconnecting using new SSH key...
==> default: Machine booted and ready!
==> default: Checking for guest additions in VM...
    default: The guest additions on this VM do not match the installed version of
    default: VirtualBox! In most cases this is fine, but in rare cases it can
    default: prevent things such as shared folders from working properly. If you see
    default: shared folder errors, please make sure the guest additions within the
    default: virtual machine match the version of VirtualBox you have installed on
    default: your host and reload your VM.
    default:
    default: Guest Additions Version: 5.2.34
    default: VirtualBox Version: 6.0
==> default: Mounting shared folders...
    default: /vagrant => /Users/martin/code/test

现在 ssh 登录到这个崭新的 vm 。

➜  test vagrant ssh
Welcome to Ubuntu 18.04.4 LTS (GNU/Linux 4.15.0-91-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  System information as of Sun Mar 29 15:42:53 UTC 2020

  System load:  1.25              Processes:             99
  Usage of /:   10.1% of 9.63GB   Users logged in:       0
  Memory usage: 12%               IP address for enp0s3: 10.0.2.15
  Swap usage:   0%


0 packages can be updated.
0 updates are security updates.


vagrant@ubuntu-bionic:~$ top

导入 CentOS 7 可能遇到的问题

CentOS 7 和 8 的相关版本在我的测试环境中都出现了导入正常 vagrant up 异常的问题，通常网络搜索错误代码后，就可以解决了，如果有任何问题，欢迎到我的微信公众后台留言。

总结

Vagrant 的功能性和必要性是非常高的，特别是对于天朝的码农而言，就更加重要了。它是 DevOps 工具链上的知名工具，而它的使用率和广泛性却不高。后续还会出这方面的系列内容，讲解更多关于 Vagrant 的优化和功能。

2io
